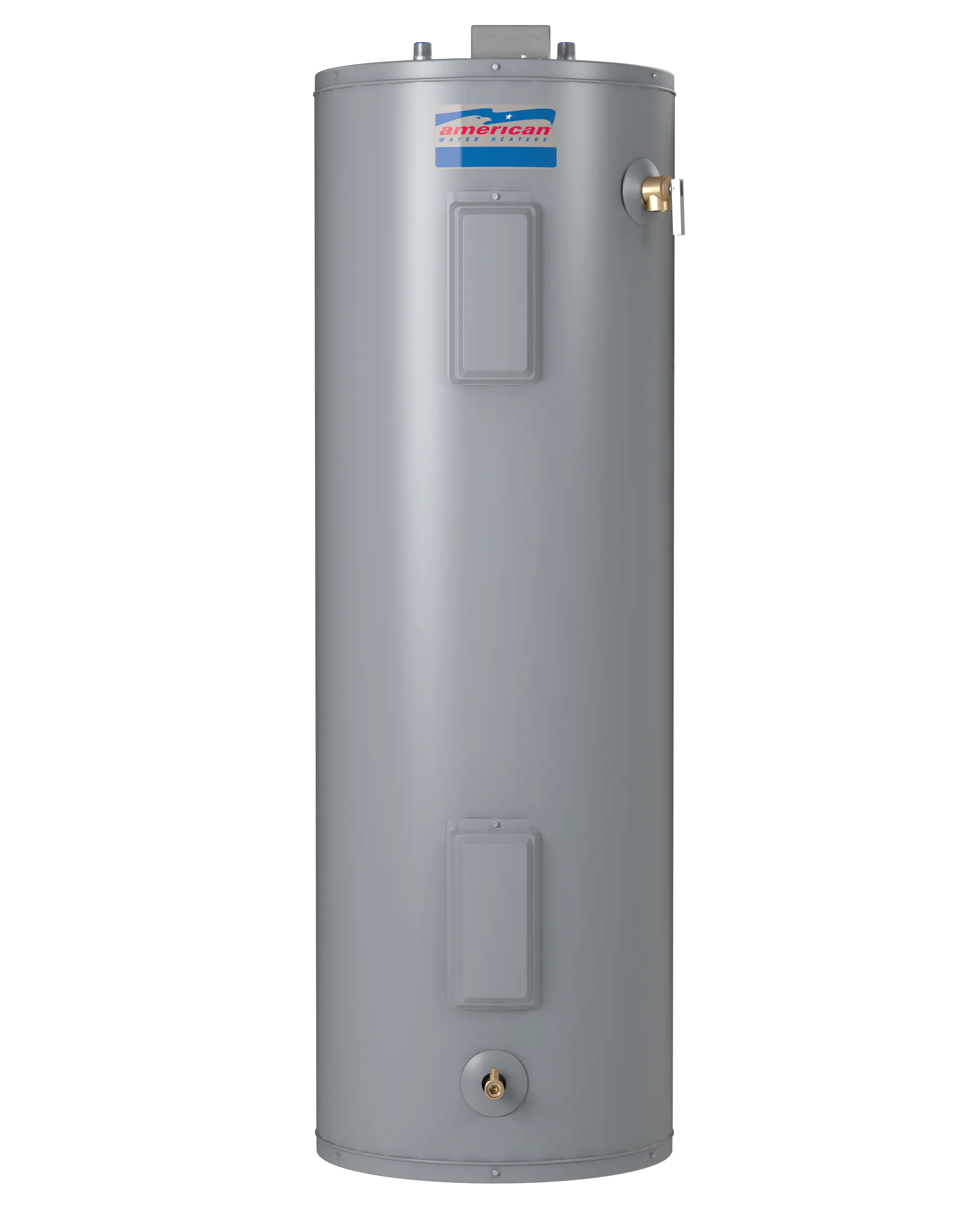

Proline Residential Electric Water Heaters |Energy Efficient

Proline Residential Electric Water Heaters - 30 to 119 Gallons

Available in Tall, Short, and Lowboy Models: To accommodate various installation spaces
Dynaclean™ Diffuser Dip Tube: Minimizes hot water mixing with cold water for improved efficiency and reduces sediment buildup
Coregard™ Anode Rod: Provides longer lasting corrosion protection compared to standard steel anodes
Permaglas® Glass Coating: Protects the steel tank from corrosion and extends tank life
Heat Traps: Improve energy efficiency by minimizing heat loss
Multiple Element Options: Allows for tailoring heating capacity to specific needs (depending on model)
Adjustable Thermostats: Enables setting desired water temperature
Durable Brass Drain Valve: Ensures easy draining for maintenance or repairs
T&P Relief Valve: Provides safety by automatically relieving pressure in case of overheating
Complies with Latest Efficiency and Safety Standards: Ensures energy-efficient operation and safe use
Long-Term Warranty: Provides peace of mind with a 6-year limited warranty on tank and parts

Tank Construction:
- Material: Heavy duty carbon steel
- Maximum Working Pressure: 150 psi (10 bar)
- Test Pressure: 300 psi (20 bar)
- Inner Liner: Permaglas® glass coating for corrosion protection
Temperature Controls:
- Surface mounted thermostats with adjustable range: 43°C (110°F) to 71°C (160°F)
- Hi-limit safety control with factory set limit at 83°C (180°F)
- Accuracy: ±2.5°C (5°F)
Heating Element:
- Standard: Immersion type, zinc coated copper, 4.5 kW, 240V
- Optional elements available (depending on model): 1.5 kW to 6.0 kW
Water Connections:
- Standard: 3/4″ inlet and outlet on all models
Anode Rod:
- Coregard™: Aluminum anode with stainless steel core for extended corrosion protection
Dip Tube:
- Dynaclean™: PEX cross-linked polymer dip tube for minimizing hot water mixing with incoming cold water and reducing sediment buildup
Heat Traps:
- Factory installed on inlet and outlet connections for improved energy efficiency
T&P Relief Valve:
- Factory installed, side-mounted T&P safety relief valve (standard)
- Top-mounted option available on select models
Drain Valve:
- Durable, tamper-resistant brass drain valve
Code Compliance:
- Meets Federal Energy Efficiency Standards (NAECA 2004)
- Meets U.S. Department of Energy standby loss requirements
- Meets ASHRAE/IES 90.1 standards
Certifications:
- Residential models: UL 174 certified
- Export models: UL 174, SASO, GSO, PAI, and IEC 60335-2-21 compliant
Warranty:
- 6-year limited tank and parts warranty
