Technical characteristics

• Available in 110V/60Hz. or 230V/50-60Hz.

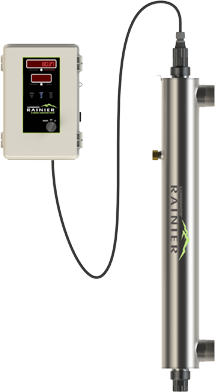

• Modular control panel with LED display for UV output, remaining lamp life, total running hours, audible & visual lamp failure, remote on and solenoid ready.
• 316L stainless steel, polished reactors, with integral sensor port to allow for sensor upgradeability in the future (comes standard with visual glow plug)
• Designed & manufactured to ASME pressure vessel standards.
• Reliable, industry proven low pressure amalgam (LP‑AM) coated UV lamps with ceramic bases for durability, 12,000-hour lamp life.
• Uniform lamp output in both hot or cold applications.
• Flexible vertical or horizontal installation.
• User friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed).
• True gland seal retaining nut with positive stop.
• Constant current electronic controller in a splash-proof (IP-54) case with audible and visual lamp failure indicators.

MODELS & FLOW RATES:

• 35 GPM (132 lpm)      LR5/6-355 Series
• 55 GPM (208 lpm)      LR5/6-555 Series
• 85 GPM (322 lpm)      LR5/6-855 Series
• 140 GPM (530 lpm)    LR5/6-1105 Series
• 180 GPM (681 lpm)    LR5/6-1405 Series
• 215 GPM (814 lpm)    LR5/6-1755 Series

APPLICATIONS INCLUDE:

• Food & Beverage
• Pharmaceutical
• Swimming Pools Water Reuse
• Ultrapure
• Recreational Water
• Aquaculture
• Hydroponic
